[FPGA] gate

2022. 10. 5. 04:15· FPGA
반응형

github



GitHub - kyw6416/FPGA_gates: AND, NAND, OR, NOR, XOR, NOT

AND, NAND, OR, NOR, XOR, NOT. Contribute to kyw6416/FPGA_gates development by creating an account on GitHub.

github.com



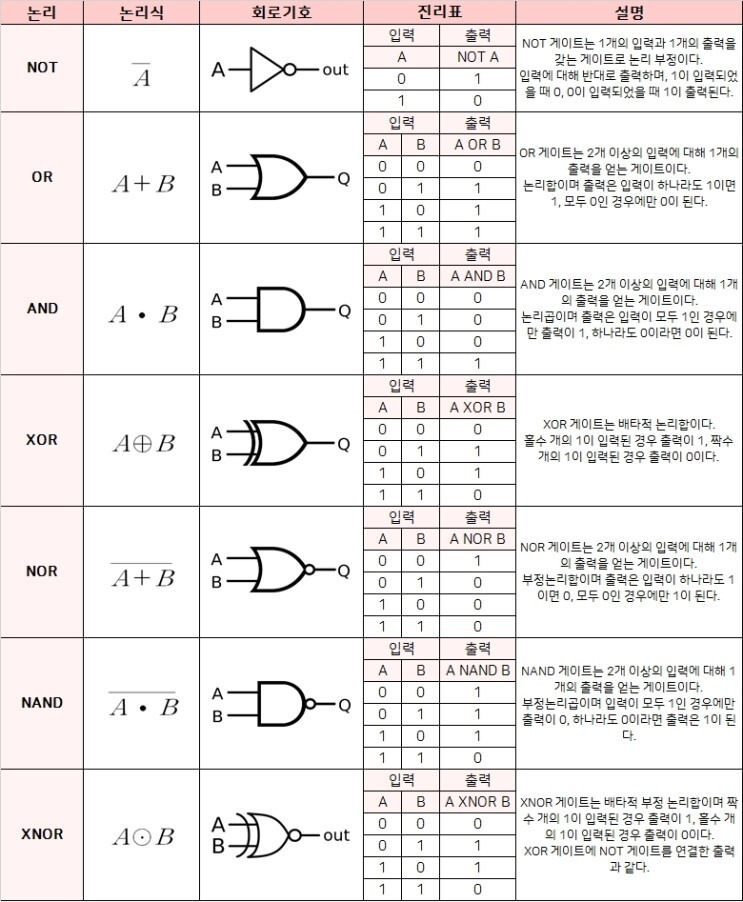

Design source

`timescale 1ns / 1ps

module gate(
    input i_switch_0,
    input i_switch_1,

    output o_and, o_nand, o_or, o_nor, o_xor, o_not
);

    assign o_and  =   i_switch_0 & i_switch_1;
    assign o_nand = ~(i_switch_0 & i_switch_1);
    assign o_or   =   i_switch_0 | i_switch_1;
    assign o_nor  = ~(i_switch_0 | i_switch_1);
    assign o_xor  =   i_switch_0 ^ i_switch_1;
    assign o_not  =  ~i_switch_0;

endmodule

schematic

simulation source

`timescale 1ns / 1ps

// Test Bench

module tb_gate();

    reg i_switch_0, i_switch_1;
    wire o_and, o_nand, o_nor, o_not, o_or, o_xor;

    gate dut(
    .i_switch_0(i_switch_0),
    .i_switch_1(i_switch_1),

    .o_and(o_and),
    .o_nand(o_nand),
    .o_or(o_or),
    .o_nor(o_nor),
    .o_xor(o_xor),
    .o_not(o_not)

    );

    initial begin
        #00 i_switch_0 = 1'b0; i_switch_1 = 1'b0;
        #10 i_switch_0 = 1'b0; i_switch_1 = 1'b1;
        #10 i_switch_0 = 1'b1; i_switch_1 = 1'b0;
        #10 i_switch_0 = 1'b1; i_switch_1 = 1'b1;
        #10 $finish;
    end

endmodule

timing chart

constraints

## Switches

set_property -dict { PACKAGE_PIN V17  IOSTANDARD LVCMOS33 } [get_ports { i_switch_0  }]; #IO_L19N_T3_A09_D25_VREF_14 ,Sch=SW0
set_property -dict { PACKAGE_PIN V16  IOSTANDARD LVCMOS33 } [get_ports { i_switch_1  }]; #IO_L19P_T3_A10_D26_14      ,Sch=SW1

## LEDs

set_property -dict { PACKAGE_PIN U16  IOSTANDARD LVCMOS33 } [get_ports { o_and  }]; #IO_L23N_T3_A02_D18_14        ,Sch=LED0
set_property -dict { PACKAGE_PIN E19  IOSTANDARD LVCMOS33 } [get_ports { o_nand  }]; #IO_L3N_T0_DQS_EMCCLK_14      ,Sch=LED1
set_property -dict { PACKAGE_PIN U19  IOSTANDARD LVCMOS33 } [get_ports { o_or  }]; #IO_L15P_T2_DQS_RDWR_B_14     ,Sch=LED2
set_property -dict { PACKAGE_PIN V19  IOSTANDARD LVCMOS33 } [get_ports { o_nor  }]; #IO_L15N_T2_DQS_DOUT_CSO_B_14 ,Sch=LED3
set_property -dict { PACKAGE_PIN W18  IOSTANDARD LVCMOS33 } [get_ports { o_xor  }]; #IO_L16P_T2_CSI_B_14          ,Sch=LED4
set_property -dict { PACKAGE_PIN U15  IOSTANDARD LVCMOS33 } [get_ports { o_not  }]; #IO_L23P_T3_A03_D19_14        ,Sch=LED5

## Configuration options, can be used for all designs
set_property CONFIG_VOLTAGE 3.3 [current_design]
set_property CFGBVS VCCO [current_design]

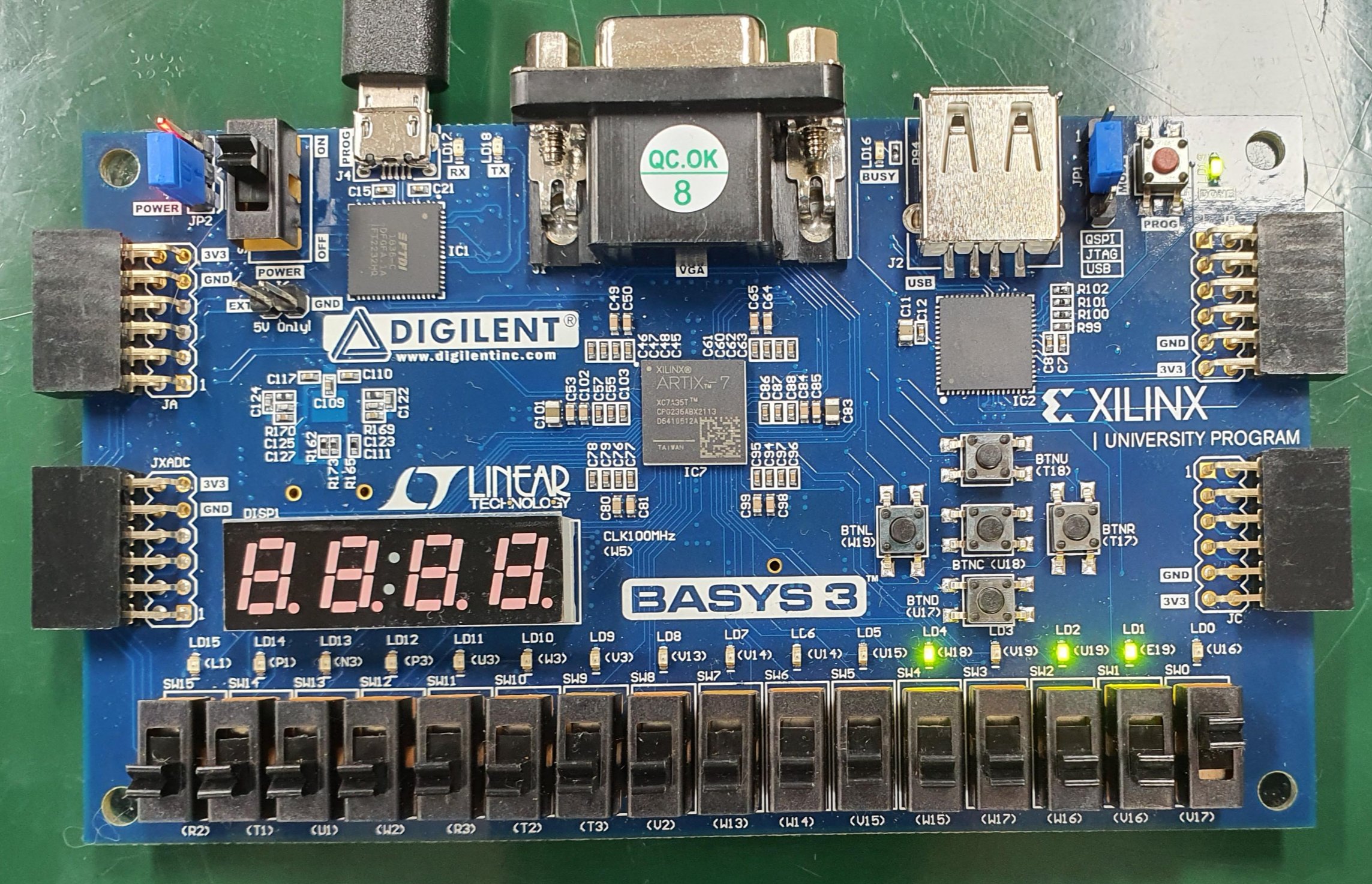

작동사진

i_switch_0 = 0, i_switch_1 = 0
i_switch_0 = 0, i_switch_1 = 1
i_switch_0 = 1, i_switch_1 = 0
i_switch_0 = 1, i_switch_1 = 1
